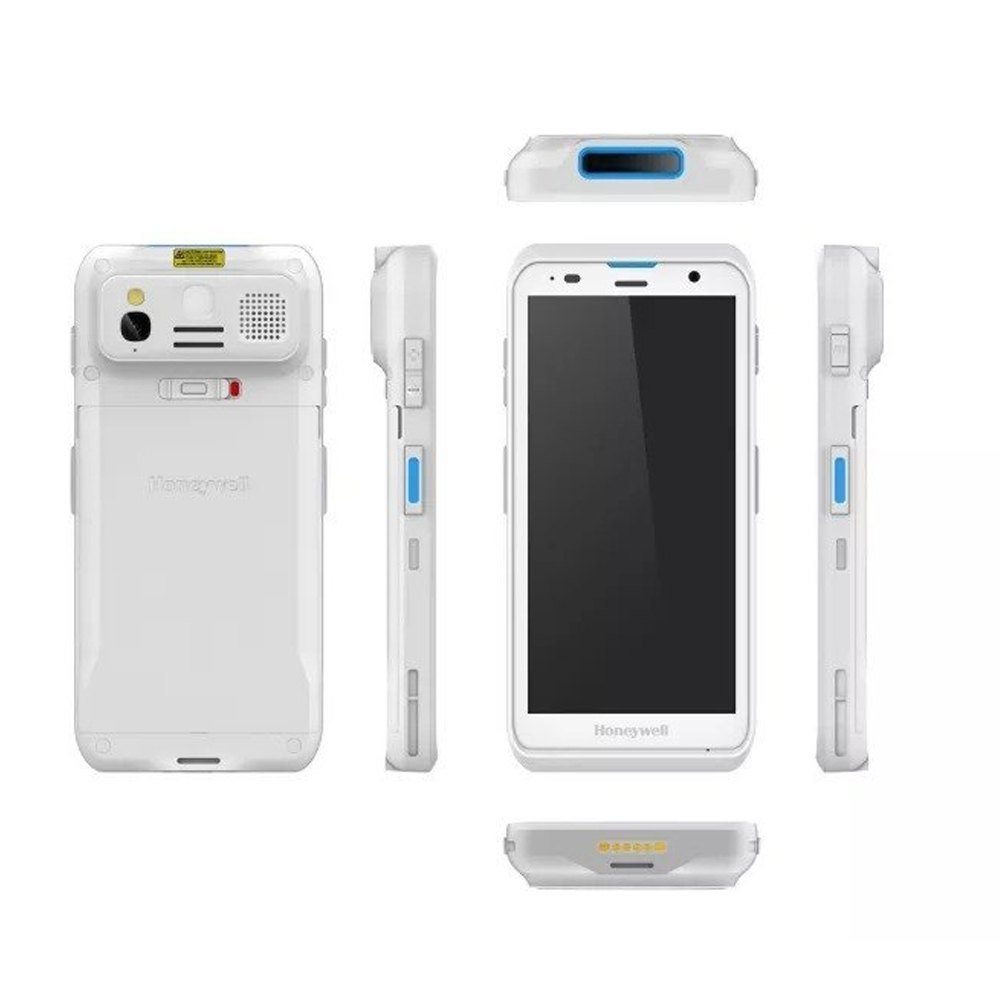

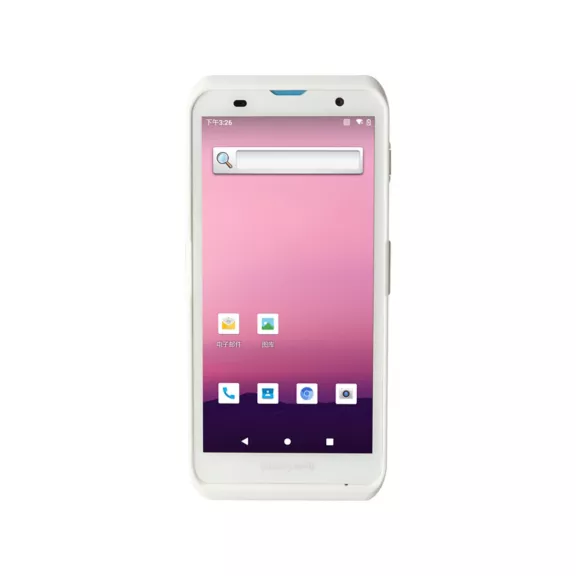

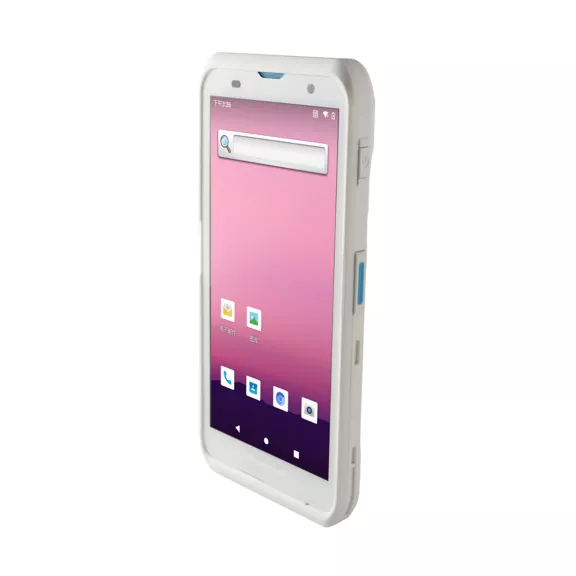

Honeywell ScanPal EDA52-1 Android Barcode Scanner
Buy NowDescription
Features
- Application
- Healthcare
- Housing Grade
- Disinfectant Housing
- Camera
- 13-megapixel color front camera; 5-megapixel color rear camera
- Camera Position
- Front and Rear
Dimensions
- Overall Dimensions
- 159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)
Scanning Specifications
- Decode Capability
- 1D/2D barcode
Network
- WWAN Specifications
- WWAN Radio:•GSM/EDGE: Bands 2, 3, 5, 8•UMTS/HSPA+: Bands 1, 2, 4, 5, 6,8, 9, 19•FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9,12,13,17,19,20,25,26,28,30,66•TDD-LTE: Bands 38, 39, 40, 41
- WLAN Specifications
- •WLAN Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)•WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP•Additional WLAN Features: 802.11 d/e/h/i/k/ r/u/w /v, 1X1 MU-MIMO
- GPS Specifications
- Simultaneous receiver support for GPS, GLONASS and BeiDou (WWAN Only)
- Computer Wireless Communication
- NFC: Integrated Near Field Communication
- Bluetooth Specifications
- Bluetooth Class 5.1
Software & Firmware
- Operating System
- •Android 11, upgradeable to Android 13*•Android 13 is pending for the confirmation from Qual- comm and Google
Memory & Data
- Memory
- 3 GB RAM/32 GB Flash; 4 GB RAM/64 GB Flash
Hardware
- Scan Engine Model
- Honeywell N3601 Imager
- Processor
- Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quadlow-power Kryo cores 1.8 GHz
- Display Size
- Gorilla Glass 5, 5.5-inch
- Display Resolution
- 1440 x 720 High Definition
- Network
- 4G
Electrical
- Battery Types
- removable
- Battery Type
- Li-Ion, 3.8 V
- Battery Capacity
- 4,500 mAh
Environmental
- Storage Temperature Range
- -30°C to +70°C (-22°F to 158°F)
- Operating Temperature
- -20°C to +50°C (-4°F to +122°F)
- Operating Humidity
- 5% to 90% (non-condensing)
- Cold Storage
- -30°C to +70°C (-22°F to 158°F)
Standards & Approvals
- Tumble Specifications
- 550 times at 0.5 m (1.64 ft)
- Protection Ratings
- IP67
- Drop Specifications
- Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperatureMultiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature
